Monday, June 14, 2010

Using convertView in getView() to make ListView efficient

Refer to document of Android Developers about getView(); it's stated that :

convertView - The old view to reuse, if possible. Note: You should check that this view is non-null and of an appropriate type before using. If it is not possible to convert this view to display the correct data, this method can create a new view.

If the convertView is null, we have to run the code below to create a new View.
LayoutInflater inflater=getLayoutInflater();
row=inflater.inflate(R.layout.row, parent, false);

If convertView is NOT null, we can simple re-use the convertView as the new View. It will happen when a new row appear and a old row in the other end roll out.

There are only seven elements in DayOfWeek[], it's not enough to demo this case. So we modify to use month[] of 12 elements.

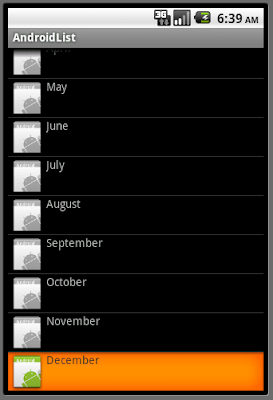

Using convertView in getView() to make ListView efficient

Note the change in the method getView():

AndroidList.java changed from last exercise "Custom ArrayAdapter, with with different icons".
package com.exercise.AndroidList;

import android.app.ListActivity;
import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

public class AndroidList extends ListActivity {

public class MyCustomAdapter extends ArrayAdapter<String> {

public MyCustomAdapter(Context context, int textViewResourceId,
String[] objects) {
super(context, textViewResourceId, objects);
// TODO Auto-generated constructor stub
}

@Override
public View getView(int position, View convertView, ViewGroup parent) {
// TODO Auto-generated method stub
//return super.getView(position, convertView, parent);

View row = convertView;

if(row==null){
LayoutInflater inflater=getLayoutInflater();
row=inflater.inflate(R.layout.row, parent, false);
}

TextView label=(TextView)row.findViewById(R.id.weekofday);
label.setText(month[position]);
ImageView icon=(ImageView)row.findViewById(R.id.icon);

if (month[position]=="December"){
icon.setImageResource(R.drawable.icon);
}
else{
icon.setImageResource(R.drawable.icongray);
}

return row;
}
}

String[] month = {
"January", "February", "March", "April",
"May", "June", "July", "August",
"September", "October", "November", "December"
};

/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
//setContentView(R.layout.main);
/*setListAdapter(new ArrayAdapter<String>(this,
R.layout.row, R.id.weekofday, DayOfWeek));*/
setListAdapter(new MyCustomAdapter(AndroidList.this, R.layout.row, month));
}

@Override
protected void onListItemClick(ListView l, View v, int position, long id) {
// TODO Auto-generated method stub
//super.onListItemClick(l, v, position, id);
String selection = l.getItemAtPosition(position).toString();
Toast.makeText(this, selection, Toast.LENGTH_LONG).show();
}

}
